Breather Fabric

Non-woven breather fabrics tailored to meet your requirements

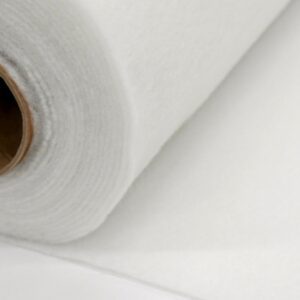

Breather fabric is a 100% non-woven polyester or nylon fabric that is designed to allow airflow throughout the vacuum bagging process as well as bleed out an excess resin in a composite part. It allows great conformity around a composite part while under vacuum or autoclave pressure. Aerovac manufactures breather fabric in standard roll formats, slit widths, or cut shapes tailored to meet your requirements.

Our high-quality breather fabrics allow airflow throughout the vacuum bagging process as well as bleed out excess resin in a composite part, allowing great conformity around a composite part under vacuum pressure.

Aerovac Breather Fabrics are available through Composites One in North America or through Aerovac’s Distribution Network globally.

Breather Fabric Product List

For more detailed information on each product, fill out the form below to download the respective Technical Data Sheets.

Product

Weight/Length

Description

AB80

2.6oz/yd (80g/m)

Lightweight, non-woven polyester breather felt which is mechanically bonded by needling for use up to 400°F (204°C).

AB10

9.8oz/yd (330g/m)

Heavyweight non-woven polyester breather felt ideal for use in oven or high pressure autoclave environments up to 400°F (204°C).

AB100

4.5oz/yd (150g/m)

Medium weight polyester breather with good all round stretch and drapeability making it ideal for use on components with complex curvatures up to 401°F (204°C).

AB20

28.7oz/yd (680g/m)

Heavyweight polyester breather ideal for use in oven or high pressure autoclave environments up to 400°F (204°C).

AB250HT

7.37oz/yd (250g/m)

Ultra heavyweight polyester breather ideal for use in oven or high pressure autoclave environments up to 400°F (204°C).

A3000-4 & -4FR

4oz/yd (135g/m)

Stretchable, non-woven polyester breather felt with drapeability enabling it to conform closely to the contours of your part, which works up to 400°F (204°C). A highly efficient breather due to multi-directional stretch combined with low density lightweight construction.

A3000-7 & -7FR

7oz/yd (237g/m)

Stretchable, non-woven polyester breather felt with good multi-directional stretch combined with low density lightweight construction. Works up to 400°F (204°C).

RC-3000-10A & -10AFR

10oz/yd (339g/m)

Non-woven polyester breather felt capable of operating at temperatures up to 400°F (204°C) and pressures up to 100PSI (6.9bar).

RC-3000-20 & -20FR

20oz/yd (680g/m)

Heavyweight polyester breather felt ideal for oven or high pressure autoclave cures up to 400°F (204°C) and is approved on various aerospace specifications.

AB40N

11.8oz/yd (400g/m)

Heavyweight nylon 66 breather felt which is extremely resistant to “locking off”. Ideal for high temperature 450°F (232°C) and pressure cures, where other fiber types are less resistant to compression.

AB10HA

11.3oz/yd (380g/m)

Heavyweight polyester breather felt ideal for use in oven or high pressure autoclave environments up to 400°F (204°C).

RC-3000-NB

Range available in Technical Data Sheet

Heavyweight nylon 66 breather felt which is extremely resistant to “locking off”. Ideal for high temperature 450°F (232°C) and pressure cures, where other fiber types are less resistant to compression.

RC-3500HT

18oz/yd (610g/m)

Non-woven fiberglass breather felt capable of operating at temperatures above 1000°F (538°C) without taking a heat set, and pressures over 200PSI/13.8bar. Engineered for use on polyimide curing, thermoplastic consolidations and very high temperature vacuum bagging applications.

Please check the box next to the product you are interested in and fill out the form to download the Technical Data Sheet PDFs. The download will happen automatically upon submission.
