Peel Ply A100 ECO
A100 ECO is a Porous Nylon PA56 peel ply, sustainably produced from renewable sources such as corn and wheat, which results in a 50% reduction in greenhouse gas emissions compared to petroleum-based polyamide. Recommended for composite manufacture and metal bonding applications, this peel ply is heat set and scoured, for use directly against laminates or bond lines. It strips cleanly and quickly from most commercial resin systems and leaves a course weave pattern on the laminate upon removal. Available in solid white, or white with a red tracer. Slit widths are available.
FEATURES OF PEEL PLY A100 ECO
- Sustainably produced from renewable sources.
- Imparts a coarse weave pattern.
- Heat set and scoured.
- Strips cleanly and quickly.
Aerovac does not recommend the use of woven nylon fabrics with phenolic resin or prepreg systems, as acid in the catalyst can break down nylon materials. Therefore, we recommend that customers conduct their own internal compatibility tests.
Max Use Temperature
204°C (400°F)
Color

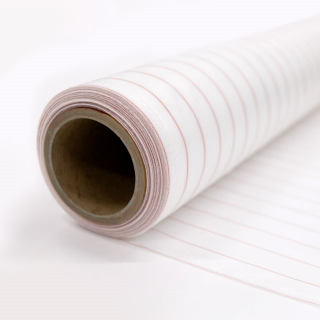

A100 ECO: White | A100PS ECO: White with red tracer
Fiber
Nylon (PA56)
Weight
85g/m² | 2.51oz/yd²
No special storage conditions required, however we recommend the product be stored in its original packaging. Please refer to the product SDS for safe handling, personal protective equipment recommendations and disposal considerations.
