VacFilm SV4000

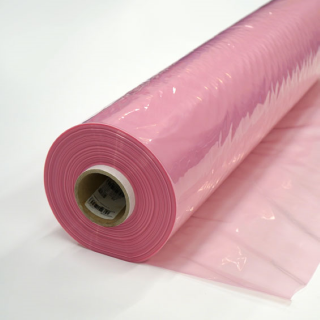

VacFilm SV4000 is a high strength, high elongation mononylon autoclave vacuum bagging film ideal for a wide range of vacuum infusion applications. This high-temperature bagging film’s strength and elongation make it suitable for parts with complex geometry, and its construction makes it good for use with polyester, vinyl ester and epoxy resin systems with temperature ranges up to 414°F / 212°C. This high-temp film is ideally suited to Aerospace and autoclave applications.
FEATURES OF VACFILM SV4000
- Recommended for bagging applications where a higher softness is required.
- Strong autoclave vacuum bagging film with high elongation for detailed and complex tooling/parts.
- Suitable for cure temperatures up to 414°F (212°C).
- Recommended for use with polyester, vinylester and epoxy resin systems.
- An excellent film for autoclave use.
Max Use Temperature
212°C (414°F)
Color
Pink
Tensile strength at break (ASTM D882)
Transverse direction / Machine direction : 95MPa 13778PSI
Elongation at break (ASTM D882)
Transverse direction / Machine direction: 550%
Yield
17.78m²/kg (50μm) – 9.62yd²/lb (0.001”) / 11.85m²/kg (75μm) – 6.41yd²/lb (0.002”)
WHAT IS THE PROCESS OF VACUUM BAG AUTOCLAVE?
Our autoclave vacuum bagging film is an important element of the autoclave molding process. This is commonly used in aerospace applications where the quality of the finished part must be exceptionally high. The part is placed in a specialized bag, which is then vacuum sealed to facilitate the curing process. Our nylon vacuum bagging film is ideally suited for this process, resulting in the highest possible quality from the finished component.
Aerovac featured products are available for quick delivery based on current stock. To request a quote for VacFilm SV4000 high-temperature vacuum bagging film, complete the form below. Please allow 24-48 hours for a member of our Team to contact you.
STORAGE, HEALTH & SAFETY
VacFilm SV4000 is a hydrophilic material. Moisture and water act as plasticizers. The level of moisture content at time of use is therefore an important factor for successful performance. All nylon films absorb water. The higher the moisture content the more flexible they become. Conversely at lower moisture levels flexibility is limited.
Do not store rolls vertically on their ends. Please refer to the product SDS for safe handling and personal protective equipment recommendations and disposal considerations. If you would like to request a quote for additional products, please utilize our main Quote Request Form.
DISCLAIMER: The data and information provided on this page have been obtained from carefully controlled samples and are considered to be representative of the product described. Aerovac does not express or imply any guarantee or warranty of any kind including, but not limited to, the accuracy, the completeness or the relevance of the data and information set out herein. Because the properties of this product can be significantly affected by the fabrication and testing techniques employed, and since Aerovac does not control the conditions under which its products are tested and used, Aerovac cannot guarantee the properties provided will be obtained with other processes and equipment. No guarantee or warranty is provided if the product is adapted for a specific use or purpose. Aerovac declines any liability with respect to the use made by any third party of the data and information contained herein. Aerovac has the right to change any data or information when deemed appropriate. All trademarks are the property of their respective owners. ©2023 Aerovac LLC. All rights reserved.
