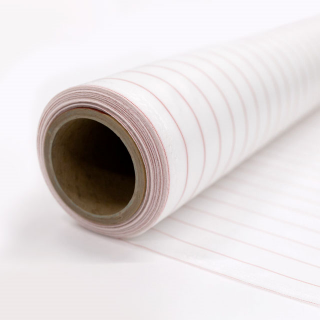

Peel Ply A100-PA6
A100-PA6 is an economical grade of nylon peel ply most commonly provided with a red indication stripe. It is made with a Polyamide 6 based nylon compared to the standard A100 which is made with a Polyamide 66 based nylon.
Available for quick ship in standard 60-inch width. Hot knife slit widths may be accommodated upon request. Samples are available.
FEATURES OF PEEL PLY A100-pa6
- Porous Polyamide 6 peel ply
- Heat set and scoured, for use directed against laminated or bond lines.
- Imparts a coarse weave pattern upon removal from the laminate.
- Strips cleanly and quickly from most commercial resin systems.
- Recommended for composite manufacture and metalbonding applications.
Aerovac does not recommend the use of woven nylon Polyamide 6 fabrics with phenolic resin or prepreg systems as acid in the catalyst can break down nylon materials. Therefore, we recommend that customers conduct their own internal compatibility tests.
Max Use Temperature
204°C (400°F)
Color
A100-PA6: White | A100-PA6 PS: White with red pin stripes
Fiber
Polyamide 6
Weight
85g/m² | 2.51oz/yd²
Standard width
1.52 m | 60 in
Standard length
274 m | 300 yd
Other sizes available
No special storage conditions required, however we recommend the product be stored in its original packaging. Please refer to the product SDS for safe handling, personal protective equipment recommendations and disposal considerations.
